PoE to USB-C Splitter UCTRONICS U6115 5V 2.4A Gigabit Ethernet

Description

Product Overview

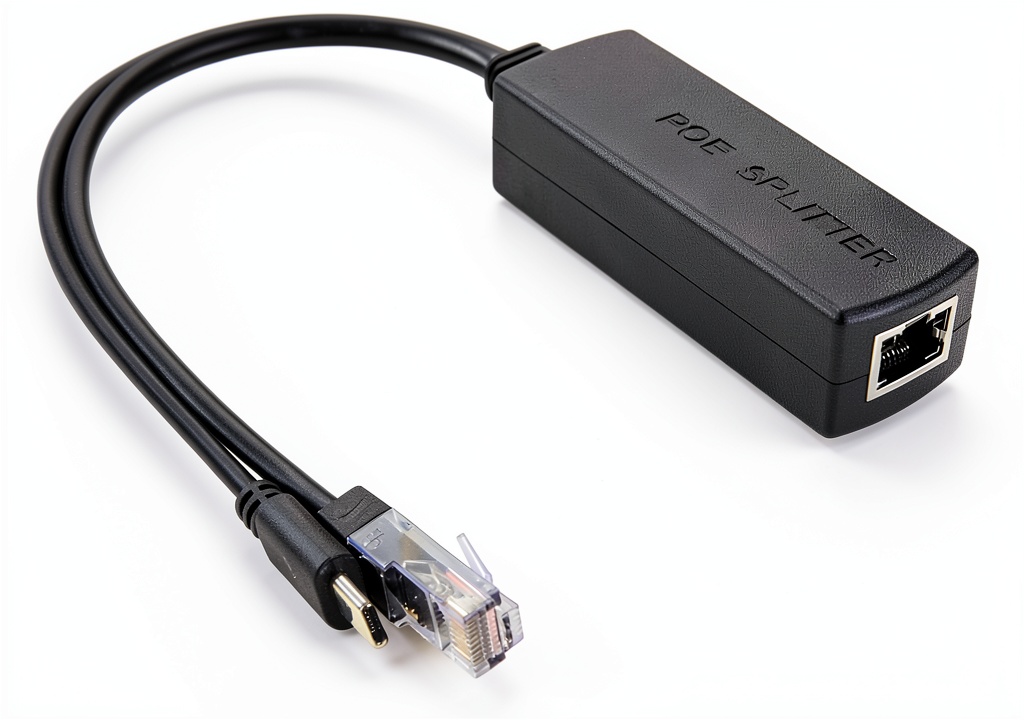

The UCTRONICS U6115 PoE splitter is engineered to bridge the gap between power‑over‑ethernet infrastructure and modern USB‑C devices. By adhering to IEEE 802.3af/at standards, it safely extracts 5 V at up to 2.4 A from a PoE‑enabled network cable, then delivers that power through a robust USB‑C connector while preserving a full‑speed gigabit Ethernet link. The compact housing, measuring just 3.22 x 1.12 x 0.92 inches and weighing only 2.08 ounces, fits neatly into tight spaces such as wall‑mounted enclosures, rack units, or portable project boxes. Its barrel‑jack variant provides additional flexibility for legacy devices that require a traditional DC input, while the USB‑C version embraces the latest universal charging standard.

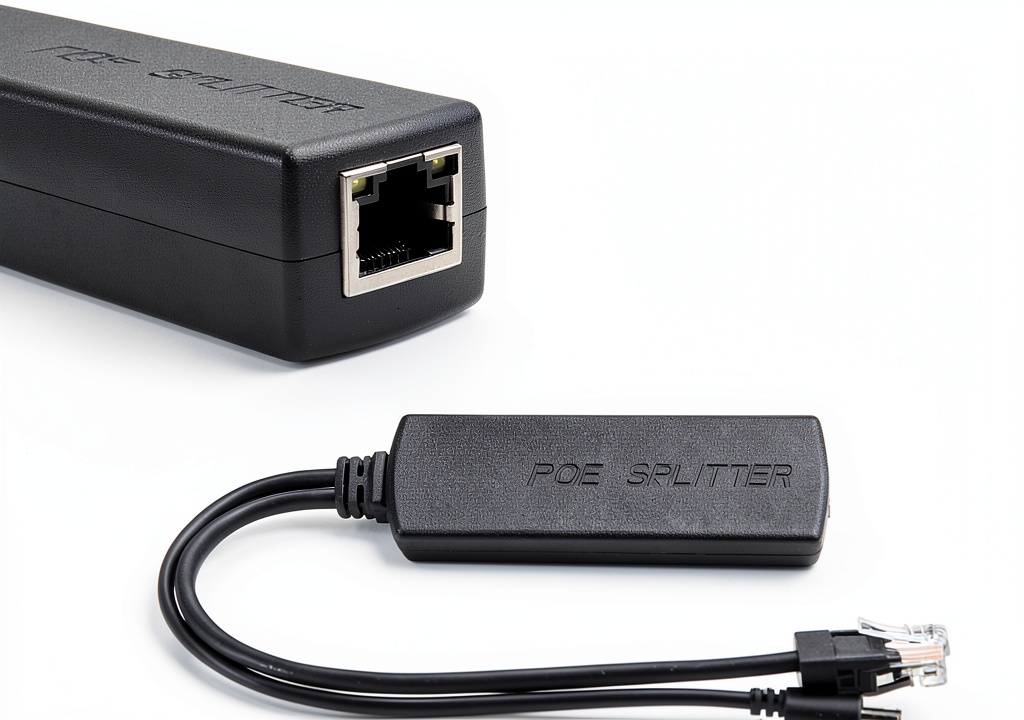

Built with a high‑quality PCB, gold‑plated contacts, and a reinforced RJ45 port, the splitter ensures low‑loss data transmission and stable voltage regulation even over cable runs up to 300 feet. The internal circuitry includes surge protection, over‑current shutdown, and thermal management to guard both the source equipment and the downstream device against electrical faults. The product is fully compliant with the 802.3af power budget, delivering a maximum of 2.4 A without exceeding the 15.4 W limit defined by the standard.

Beyond its core functionality, the UCTRONICS U6115 offers a user‑friendly LED indicator that displays power status, making troubleshooting straightforward in the field. The device is packaged with a short Ethernet cable and a mounting bracket, allowing quick installation in a variety of network topologies. Whether you are deploying a remote sensor array, a compact media server, or a development board that lacks native PoE support, this splitter provides a reliable, plug‑and‑play solution that eliminates the need for separate power adapters and reduces cable clutter.

Usage

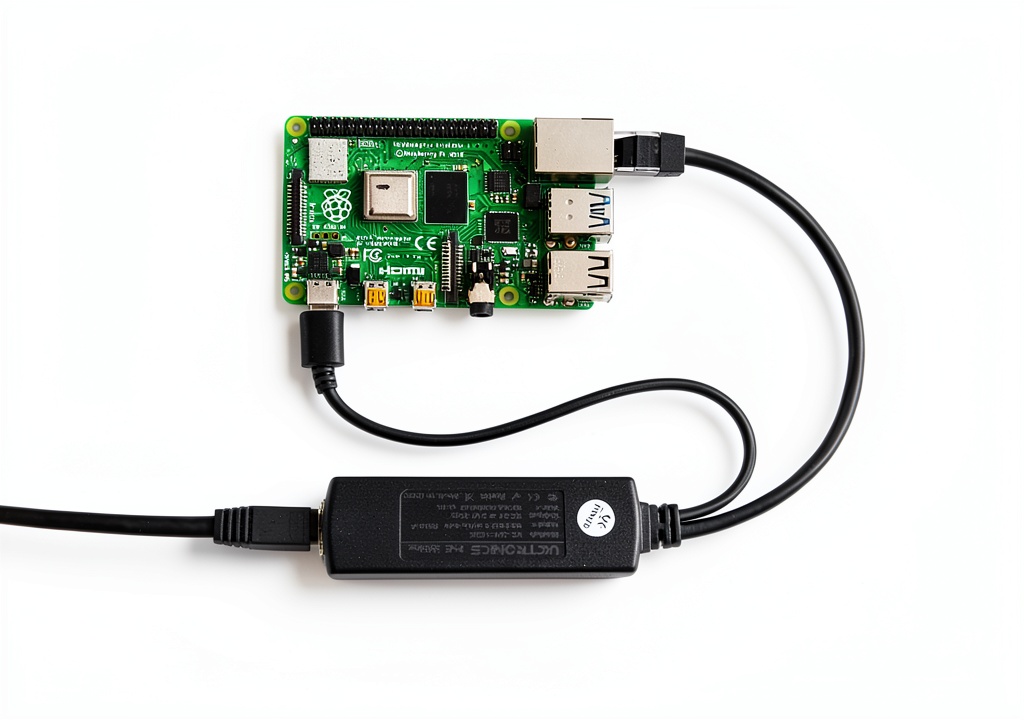

In environments where power outlets are scarce or inconvenient, the UCTRONICS PoE splitter shines. Imagine a Raspberry Pi 4 mounted in a server rack that needs continuous power for a monitoring application; by connecting the Pi to a PoE‑enabled switch through the splitter, you eliminate the need for a dedicated power brick and keep the setup tidy. Similarly, outdoor security cameras that support 5 V USB‑C charging can be powered directly from the network, simplifying installation on poles or building façades where running separate power lines would be costly.

The splitter also serves well in mobile and field‑work scenarios. Technicians deploying temporary Wi‑Fi hotspots, portable routers, or handheld diagnostic tools can rely on a single Ethernet cable for both data and power, extending operational time and reducing the number of spare batteries required. In educational labs, students can experiment with PoE concepts without risking damage to sensitive equipment, thanks to the splitter’s built‑in safety features. The device’s universal compatibility with any IEEE‑compliant PoE source—whether a switch, injector, or mid‑span—makes it a versatile accessory for a wide range of networking projects.

Why Choose Us

UCTRONICS has a reputation for delivering reliable networking accessories that combine rigorous engineering with cost‑effective pricing. The U6115 splitter benefits from the company’s extensive experience in power management and data integrity, ensuring that each unit undergoes thorough testing for voltage stability, heat dissipation, and electromagnetic compatibility. Our dedicated quality‑control team validates every batch against industry standards, providing confidence that the product will perform consistently in demanding deployments.

Customer support is a cornerstone of the UCTRONICS brand. Purchasers receive access to a responsive technical assistance team that can guide installation, troubleshoot compatibility issues, and advise on optimal PoE configurations. We also offer a comprehensive warranty and a library of online resources, including wiring diagrams, firmware updates for related devices, and best‑practice guides for PoE network design. Choosing the UCTRONICS PoE splitter means you are backed by a partner that values long‑term reliability and user satisfaction.

Key Features

• Extracts 5 V 2.4 A from any IEEE 802.3af/at PoE source, eliminating the need for separate power adapters.
• Maintains gigabit Ethernet throughput while delivering power, ensuring no loss of network performance.
• Compact, lightweight design fits into tight spaces and can be mounted on walls, racks, or enclosures.
• Built‑in safety mechanisms protect both source equipment and downstream devices from over‑voltage and overheating.
• Dedicated customer support and warranty provide peace of mind for professional and hobbyist users alike.

Technical Specifications

The splitter operates within a voltage range of 44‑57 V on the PoE side, conforming to the 802.3af/at specifications. Output voltage is regulated to a stable 5 V with a tolerance of ±0.25 V, and current is limited to 2.4 A to stay within the power budget. The RJ45 port supports auto‑MDI/MDIX, allowing direct connection without crossover cables. Operating temperature spans from -20 °C to +70 °C, making it suitable for both indoor and outdoor installations. The device complies with RoHS and CE directives, ensuring environmental safety and regulatory adherence.

Installation Guide

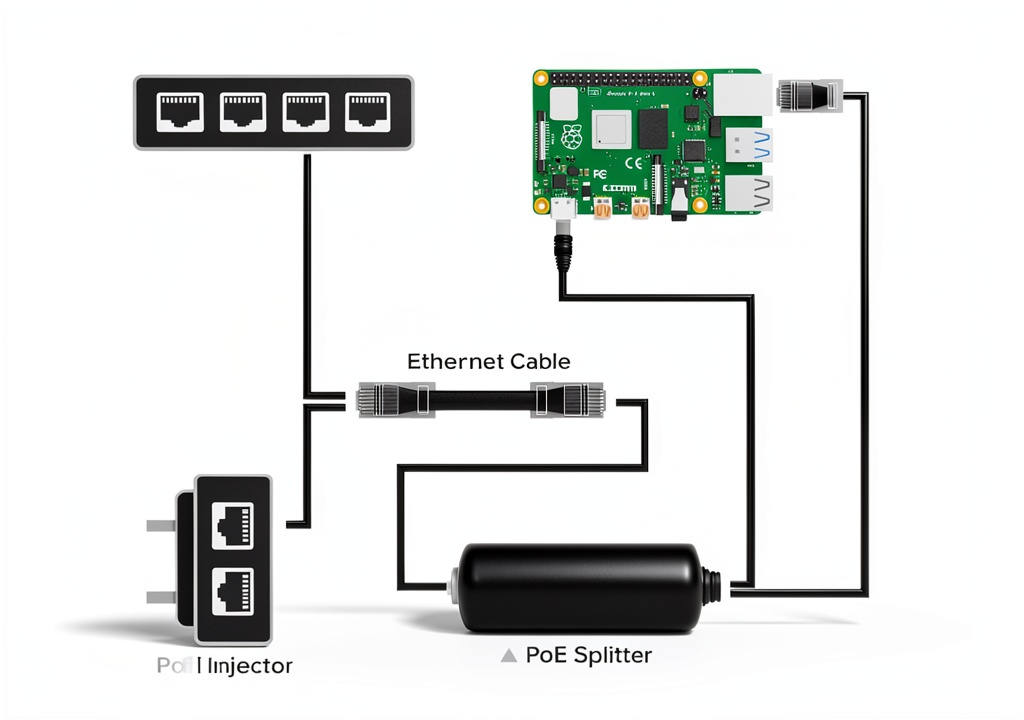

Begin by confirming that your network switch or injector provides IEEE 802.3af/at compliant PoE. Connect the Ethernet cable from the PoE source to the splitter’s RJ45 input. Plug the USB‑C output into the target device, ensuring the connector is firmly seated. Observe the LED indicator; a solid green light confirms successful power negotiation, while a blinking amber indicates a fault or insufficient power budget. Secure the splitter using the included mounting bracket, aligning the ventilation slots to promote airflow. For optimal performance, avoid bundling the Ethernet cable with high‑current power lines that could induce interference.

Compatibility

The UCTRONICS U6115 is compatible with a broad spectrum of USB‑C powered equipment, including single‑board computers (Raspberry Pi 4, Odroid), compact cameras, portable routers, and IoT gateways. It also works with legacy devices that accept a 5 V barrel‑jack input, thanks to the optional adapter cable. The splitter does not support fast‑charging protocols such as PD or QC; it is intended for devices that require a steady 5 V supply. Verify that your device’s power draw does not exceed 2.4 A to ensure reliable operation.

FAQ

Can the splitter be used with a non‑PoE switch?

No. The splitter requires an active PoE source that follows the IEEE 802.3af or 802.3at standard. Without PoE, the device will not receive power and the LED indicator will remain off.

What happens if my device draws more than 2.4 A?

The splitter includes an over‑current protection circuit that will shut down the power output to prevent damage. In such cases, the LED will flash amber, indicating that the connected device exceeds the allowable current limit.

Is the splitter waterproof for outdoor use?

The unit itself is not rated for direct exposure to water. For outdoor installations, mount the splitter inside a weather‑sealed enclosure and ensure the Ethernet cable entry points are protected with appropriate gaskets.

Can I use the splitter with a PoE injector instead of a PoE switch?

Yes. Any IEEE‑compliant PoE injector can supply the necessary power, provided it delivers the correct voltage range (44‑57 V) and adheres to the 802.3af/at specifications.
